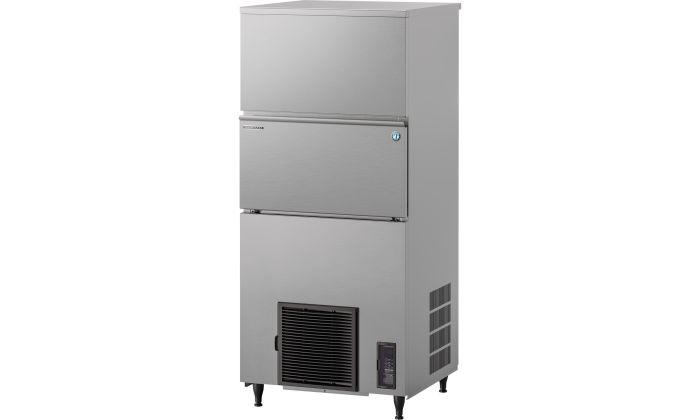

Hoshizaki IM-240PE-F-23 FlexiCube Self contained Icemaker Medium Cube 180kg per 24hr / 110kg Storage

The Hoshizaki IM-240PE-E-23 is a high capacity, self-contained cube ice maker designed for busy commercial environments needing a reliable supply of clear, consistent ice. Producing up to 180kg of medium 23g ice cubes per 24 hours, this EliteCUBE model is ideal for bars, restaurants, hotels, leisure venues and other high-demand catering sites.

This air cooled model includes Hoshizaki’s UV-C sanitisation system, which uses UV light flashes to help reduce contamination within the water tank and standing water. It also features an integrated internal drain pump, giving greater flexibility when positioning the ice maker. The drain pump allows installation within a distance of up to 10 metres and a height of up to 1.5 metres.

The IM-240PE-E-23 is built for consistent ice quality, using a smart magnetic DC pump motor with variable speed to adjust the water flow during different phases of the ice-making process. This helps reduce the risk of chipped or cloudy cubes, while Hoshizaki’s closed cell system forms each cube individually for a clear, solid finish.

With a built-in 110kg storage bin, stainless steel and galvanised steel exterior, and automated cleaning features, this self-contained ice maker is well suited to sites with high daily ice usage. It also benefits from water circuit and condenser cleaning notifications, removable water tank and pump components, adjustable dimple size and efficient insulation to support day-to-day operation and maintenance.

Key Features

• Produces up to 180kg of ice per 24 hours
• Medium 23g cube ice
• Self-contained model with built-in 110kg storage bin
• Air cooled
• EliteCUBE model with UV-C sanitisation and internal drain pump
• Integrated internal drain pump for flexible positioning
• Drain pump allows positioning up to 10 metres away and 1.5 metres in height from the drain
• Automated cleaning function
• Water circuit and condenser cleaning notifications
• Control panel for easy adjustable dimple size
• Smart magnetic DC pump motor with variable speed
• Closed water circuit to help protect against contamination
• Closed cell system for individually formed cubes
• Stand-by function for improved energy saving
• Improved water tank design to help reduce water consumption
• Uses natural R290 refrigerant
• Stainless steel and galvanised steel exterior
• Supplied with installation kit, legs and scoop
• Special order item, longer lead times may apply

Technical Specifications

• Model name: IM-240PE-E-23
• Item number: M118-D301
• Dimensions: 704mm W x 665mm D x 1510mm H
• Leg height: add 70 to 110mm
• Power supply: 1/220 to 240V/50Hz
• Electric consumption: 0.87kW
• Electrical circuit breaker protection: 5A
• Storage bin capacity: 110kg
• Net weight: 102kg
• Gross weight: 115kg
• Cooling system: air cooled
• Ambient temperature range: 1°C to 40°C
• Water supply temperature range: 5°C to 35°C
• Water pressure range: 0.7 to 8 bar
• Heat rejection: 2.58kW
• Water consumption: 0.68 litres per kg
• Refrigerant type: R290
• Refrigerant charge: 0.147kg
• Warranty: 3 years parts and labour, subject to country agreement

Optional Extras

• 4HC-H Twin Water Filter
• 4HC Replacement Cartridge
• Scoop holder kit
