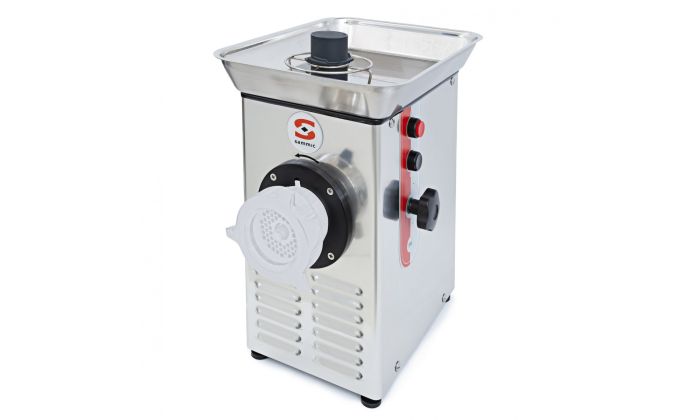

Sammic Motor unit PS-22 (without cutting unit) - 400V Three Phase

· The motor unit and the cutting units must be ordered separately. · Available with stainless steel Enterprise system cutting unit, or Unger double cut stainless steel system. · 1 knife and a Ø 6 mm mesh plate included.

Ideal for foodservice, communities and food retail.

• Stainless steel body.
• Powerful motor.
• Stainless steel mesh plate and knife.
• Easy-to-remove cutting unit for cleaning.
• Removable stainless steel hopper.
• Start-stop switch.
• Please note: as a result of continuous product improvements, these specifications are subject to change without prior notice.
• The motor unit and the cutting units must be ordered separately.

Key specifications

• Dimensions: W310 x D440 x H480mm
• Net Weight: 30kg
• Gross Weight: 32kg
• Power Supply: 400V / 50Hz / 3 phase / 2.8A / 1100W
• Connection: 3P+G
• Production / hour (max): 280 kg
• Plate diameter: 82 mm
• Inlet mouth diameter (1): 60 mm
• Refrigerated mincer: no
• Electrical supply: 230 V - 400 V / 50 Hz / 3~ (4.8 A-2.8 A)
• Electrical connection: 3P+G
• Total loading: 1100 W
• ·Width: 310 mm
• ·Depth: 440 mm
• ·Height: 480 mm
• Net weight: 30 kg

View product sheet
