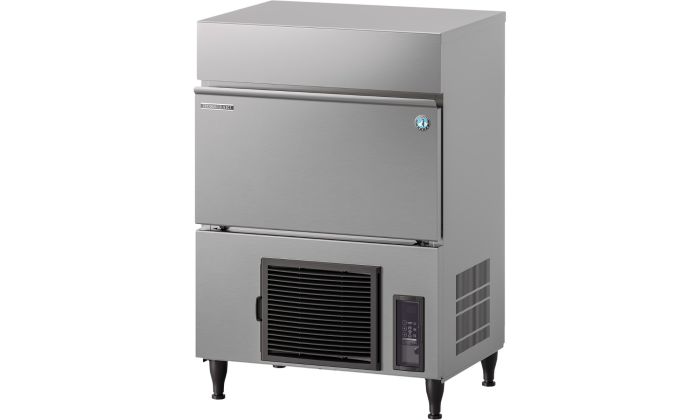

Hoshizaki IM-65PE Cube Self Contained Icemaker Large Cube 58kg per 24hr / 26kg Storage

The Hoshizaki IM-65PE is a self-contained cube ice maker designed for commercial environments needing a reliable supply of clear, consistent ice. Producing up to 58kg of large standard ice cubes per 24 hours, this IM Cube model is ideal for bars, restaurants, hotels, cafés, leisure venues and other catering sites with regular ice demand.

This air cooled model is built for consistent ice quality, using a smart magnetic DC pump motor with variable speed to adjust the water flow during different phases of the ice-making process. This helps reduce the risk of chipped or cloudy cubes, while Hoshizaki’s closed cell system forms each cube individually for a clear, solid finish.

The IM-65PE has a closed water circuit to help protect against contamination during the ice-making process. It also includes automated cleaning, water circuit and condenser cleaning notifications, stand-by and wash buttons, and removable water tank and DC pump components to support day-to-day maintenance.

With a built-in 26kg storage bin, stainless steel and galvanised steel exterior, and improved insulation, this self-contained ice maker is well suited to sites needing dependable ice production in a compact footprint. The air cooled system makes it a practical choice for a wide range of commercial catering environments.

Key Features

• Produces up to 58kg of ice per 24 hours
• Large standard cube ice
• Self-contained model with built-in 26kg storage bin
• Air cooled
• Closed water circuit to help protect against contamination
• Automated cleaning function
• Water circuit and condenser cleaning notifications
• Control panel for easy adjustable dimple size
• Smart magnetic DC pump motor with variable speed
• Closed cell system for individually formed cubes
• Improved water tank design to help reduce water consumption
• Stand-by function for improved energy saving
• Uses natural R290 refrigerant
• Stainless steel and galvanised steel exterior
• Supplied with installation kit, legs and scoop
• Special order item, longer lead times may apply

Technical Specifications

• Model name: IM-65PE
• Item number: M113
• Dimensions: 633mm W x 506mm D x 840mm H
• Leg height: add 90 to 125mm
• Product configuration: self-contained
• Power supply: 1/220 to 240V/50Hz
• Electric consumption: 0.29kW
• Electrical circuit breaker protection: 5A
• Storage bin capacity: 26kg
• Net weight: 48kg
• Gross weight: 58kg
• Cooling system: air cooled
• Ice type: large standard cubes
• Ice production: 58kg per 24 hours
• Ambient temperature range: 1°C to 40°C
• Water supply temperature range: 5°C to 35°C
• Water pressure range: 0.7 to 8 bar
• Heat rejection: 0.83kW
• Water consumption: 0.43 litres per kg
• Refrigerant type: R290
• Refrigerant charge: 0.11kg
• Warranty: 3 years parts and labour, subject to country agreement

Optional Extras

• 4HC-H Single Water Filter
• 4HC Replacement Cartridge
• UV-C sanitisation kit
• Internal drain pump
