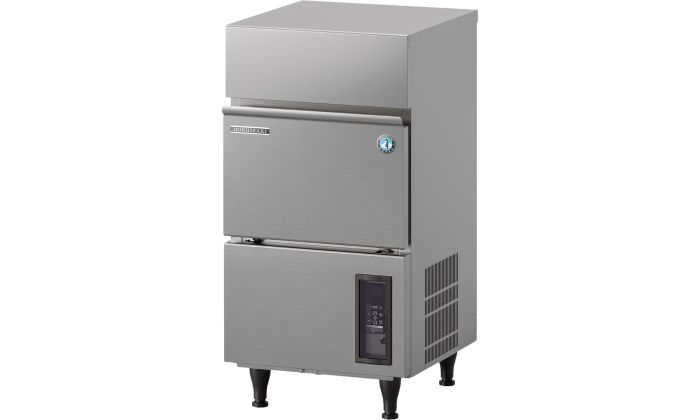

Hoishizaki IM-30CWPE Cube Self Contained Icemaker Large Cube 32kg per 24hr / 11.5kg Storage - Water Cooled

The Hoshizaki IM-30CWPE is a compact self-contained cube ice maker designed for commercial environments needing a reliable supply of clear, consistent ice. Producing up to 32kg of large standard ice cubes per 24 hours, this IM Cube model is ideal for bars, cafés, restaurants, offices and other sites with regular ice demand but limited space.

This water cooled model is built for consistent ice quality, using a smart magnetic DC pump motor with variable speed to adjust the water flow during different phases of the ice-making process. This helps reduce the risk of chipped or cloudy cubes, while Hoshizaki’s closed cell system forms each cube individually for a clear, solid finish.

The IM-30CWPE has a closed water circuit to help protect against contamination during the ice-making process. It also includes automated cleaning, water circuit and condenser cleaning notifications, stand-by and wash buttons, and removable water tank and DC pump components to support day-to-day maintenance.

With a built-in 11.5kg storage bin, stainless steel and galvanised steel exterior, and improved insulation, this compact self-contained ice maker is well suited to sites needing dependable ice production in a smaller footprint. The water cooled system can also be useful in warmer or enclosed areas where air cooled machines may be less suitable.

Key Features

• Produces up to 32kg of ice per 24 hours
• Large standard cube ice
• Compact self-contained model with built-in 11.5kg storage bin
• Water cooled
• Closed water circuit to help protect against contamination
• Automated cleaning function
• Water circuit and condenser cleaning notifications
• Control panel for easy adjustable dimple size
• Smart magnetic DC pump motor with variable speed
• Closed cell system for individually formed cubes
• Improved water tank design to help reduce water consumption
• Stand-by function for improved energy saving
• Uses natural R290 refrigerant
• Stainless steel and galvanised steel exterior
• Supplied with installation kit, legs and scoop
• Special order item, longer lead times may apply

Technical Specifications

• Model name: IM-30CWPE
• Item number: M110-D002
• Dimensions: 398mm W x 451mm D x 695mm H
• Leg height: add 92 to 127mm
• Product configuration: self-contained
• Power supply: 1/220 to 240V/50Hz
• Electric consumption: 0.17kW
• Electrical circuit breaker protection: 5A
• Storage bin capacity: 11.5kg
• Net weight: 37kg
• Gross weight: 43kg
• Cooling system: water cooled
• Ice type: large standard cubes
• Ice production: 32kg per 24 hours
• Ambient temperature range: 1°C to 40°C
• Water supply temperature range: 5°C to 35°C
• Water pressure range: 0.7 to 8 bar
• Heat rejection: 0.31kW
• Water consumption: 0.16 litres per kg
• Refrigerant type: R290
• Refrigerant charge: 0.07kg
• Warranty: 3 years parts and labour, subject to country agreement

Optional Extras

• 4HC-H Single Water Filter
• 4HC Replacement Cartridge
• Scoop holder kit
• UV-C sanitisation kit
• Internal drain pump
