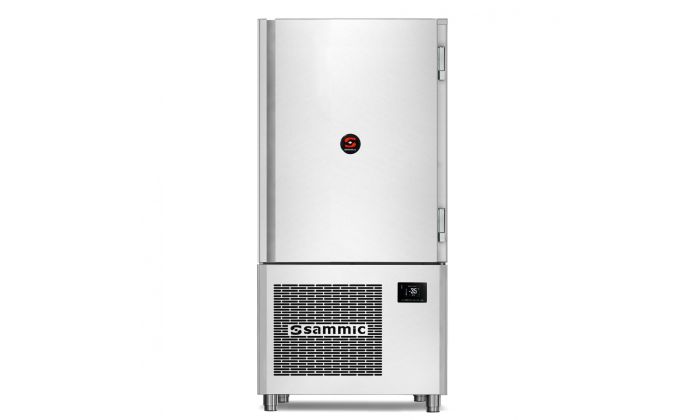

Sammic AT-12-2/70 PW Blast Chiller Freezer 12 X GN 2/1 - 400V Three Phase

Output: · Chilling: 70 kg / 90'. · Deep-freezing: 50 kg / 240'.

Quick chilling helps to maintain the quality of food, preserving the nutrients and improving the efficiency of cooking processes.

A wide range of applications

• Frozen pizzas, fresh pasta, confectionery, gastronomy, ice creams, desserts, baked goods, etc.

One piece of equipment, several functions

• Quick chilling to +3ºC which inhibits bacterial proliferation, prevents food dehydration due to evaporation and makes it possible to preserve the original properties of food for five to seven days.
• Deep-freezing to a core temperature of -18ºC in less than four hours, avoiding the formation of macrocrystals, an essential requisite if - at the time of use - unfrozen food is to keep its original consistency and quality.
• Automatic preservation at the maintenance temperature programmed after each operation.

Robust, hygienic and reliable construction

• Manufactured in stainless steel with hygienic cathodic protection and easy to clean.
• Insulation with expanded polyurethane foam in water free of CFC's and HFC's.
• High-power compressors for quick chilling.
• Indirect air flow.
• Built-in motor.
• R290 refrigerant with a low GWP content.
• Evaporators treated with cataphoresis to reduce odours and moulds, favouring performance and durability over time.

Advanced control panel

• Cycles per temperature, time or core probe.
• HARD function for rapid cooling, SOFT for deep-freezing.
• Data storage at the end of the cycle.
• Manual air defrosting.
• Possibility of customising and saving cycles and settings.
• HACCP functions for storing alarms.
• Wifi connectivity for maximum process control through the free EVConnect app.

Special cycles

• Pre-cooling.
• Sanitation of raw fish.
• Ice cream hardening.
• Other optional cycles: defrosting, internal sterilisation, cooling by core probe.

Key specifications

• Dimensions: W820 x D859 x H1709mm
• Net Weight: 210kg
• Gross Weight: 220kg
• Power Supply: 400V / 50Hz / 3N phase / 2800W
• Space between trays: 70 mm
• Chilling capacity: 90ºC a 3ºC / 90' / 70 kg
• Deep freezing capacity: 90ºC a -18ºC / 240' / 50 kg
• Consumption: 2400 W
• Electrical supply: 400 V/ 50-60 Hz / 3N~
• Internal dimensions: : 700 mm x 554 mm x 970 mm (Interior volume: 0.376 l)
• ·Width: 820 mm
• ·Depth: 859 mm
• ·Height: 1709 mm
• Net weight: 210 kg
