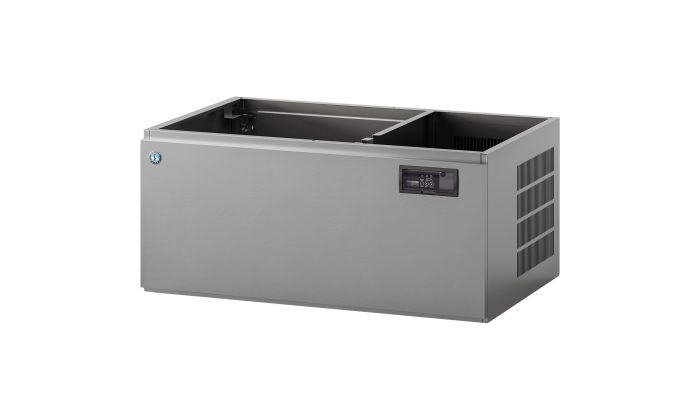

Hoshizaki IM-240XWPE Cube Modular and Stackable extension Icemaker Large Cube 209kg per 24hr - Water Cooled

The Hoshizaki IM-240XWPE is a high capacity, modular and stackable cube ice maker designed as an extension unit for sites needing increased ice production. Producing up to 209kg of large standard ice cubes per 24 hours, this IM Cube model is ideal for busy bars, restaurants, hotels, leisure venues and other high-demand catering environments.

This water cooled stackable model is built for consistent ice quality, using a smart magnetic DC pump motor with variable speed to adjust the water flow during different phases of the ice-making process. This helps reduce the risk of chipped or cloudy cubes, while Hoshizaki’s closed cell system forms each cube individually for a clear, solid finish.

The IM-240XWPE has a closed water circuit to help protect against contamination during the ice-making process. It also includes automated cleaning, water circuit and condenser cleaning notifications, stand-by and wash buttons, and removable water tank and DC pump components to support day-to-day maintenance.

As a modular and stackable extension unit, this model should be used with a suitable storage bin and compatible top kit. It also features higher-grade stainless steel, improved insulation and a water-saving tank design to support reliable commercial use.

Key Features

• Produces up to 209kg of ice per 24 hours
• Large standard cube ice
• Modular and stackable extension model
• Requires compatible storage bin and top kit
• Water cooled
• Closed water circuit to help protect against contamination
• Automated cleaning function
• Water circuit and condenser cleaning notifications
• Control panel for easy adjustable dimple size
• Smart magnetic DC pump motor with variable speed
• Closed cell system for individually formed cubes
• Improved water tank design to help reduce water consumption
• Stand-by function for improved energy saving
• Uses natural R290 refrigerant
• Stainless steel and galvanised steel exterior
• Supplied with brace, installation kit and scoop
• Made in the UK
• Special order item, longer lead times may apply

Technical Specifications

• Model name: IM-240XWPE
• Item number: M120-D009
• Dimensions: 1084mm W x 700mm D x 500mm H
• Product configuration: stackable
• Power supply: 1/220 to 240V/50Hz
• Electric consumption: 0.76kW
• Electrical circuit breaker protection: 5A
• Net weight: 78kg
• Gross weight: 94kg
• Cooling system: water cooled
• Ice type: large standard cubes
• Ice production: 209kg per 24 hours
• Ambient temperature range: 1°C to 40°C
• Water supply temperature range: 5°C to 35°C
• Water pressure range: 0.7 to 8 bar
• Heat rejection: 1.47kW
• Water consumption: 0.99 litres per kg
• Refrigerant type: R290
• Refrigerant charge: 0.147kg
• Warranty: 3 years parts and labour, subject to country agreement

Compatible Bin

• B-340SB

Optional Extras

• 4HC-H Twin Water Filter
• 4HC Replacement Cartridge
• Scoop holder kit
• TK-48 top kit for B-340SB, optional and not required
• TK-IMD2 top kit for B-340SB
