Blue Seal Turbofan E32D4 - Electric Convection Oven 4 Tray Digital

Skip to the end of the images gallery

Skip to the beginning of the images gallery

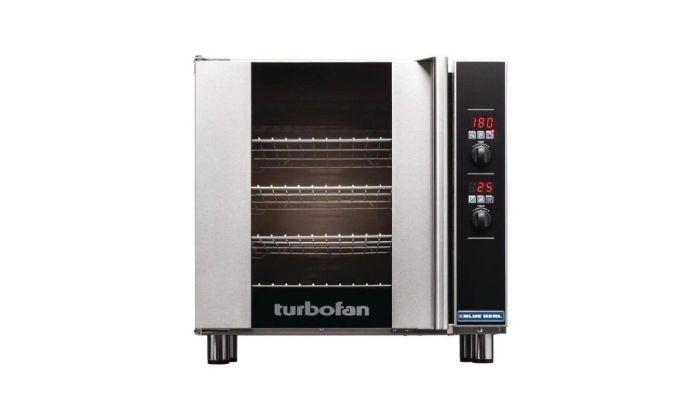

Blue Seal E32D4 - 4 Tray Digital Convection Oven

The E32D4 is the ultimate convection oven.
The single phase, 6.5kW connection means that it can cook and bake for every need whilst retaining portability.
Featuring a bi-directional reversing fan system, digital controls and a water injection mode.
The low temperature safe touch door has a cool touch handle and an easy to clean plug in door seal.
This oven is as versatile and reliable as it gets.

STANDARD FEATURES:
• 4 18” x 26” / 460 x 660 full size sheet pan capacity
• 4 600 x 400 tray capacity
• 110mm tray spacing
• Compact 735mm width
• External Dimensions:735w x 810d x 730h mm including 76mm feet
• Oven Internal Dimensions: 465w x 700d x 515h mm
• Digital display Time and Temperature controls
• Large easy view 20mm high displays
• Electronic thermostat control
• Electronic timer with countdown or time count modes
• Programmable for up to 20 programs
• Water Injection mode
• High performance bi-directional reversing fan system
• 300W bi-directional fan motor
• 6.3kW heating power
• Safe-Touch vented side hinged door (standard LH
hinge). Optional RH hinge (field convertible)
• Stay-Cool door handle
• Vitreous enamel oven chamber
• Plug-in continuous oven door seal
• Dual halogen oven lamps
• Anti-skid 50mm dia. 76mm high adjustable stainless
steel feet
• 4 oven wire racks supplied
• 100% recyclable packaging

CONSTRUCTION:
Vitreous enamel fully welded oven chamber
Stainless steel front, sides and top exterior
Stainless steel oven fan baffle and oven vent
Removable 4 position stainless steel side racks
Oven racks chrome plated wire (4 supplied)
Stainless steel frame side hinged door
5mm thick door outer glass
5mm thick low energy loss door inner glass
Full stainless steel welded door handle
Stainless steel control panel
Aluminised coated steel base and rear panels

CONTROLS:
Electronic controls with Digital Time and Temperature display,
Manual or Program modes
Large 20mm high LED displays
Two individual time and temperature setting control knobs
6 function keys
ON/OFF key
Oven Lamp key (toggle or auto-time off mode settings)
Timer Start/Stop key
Water Injection key (manual shot or timed shot mode settings)
Programs select key
Actual temperature display key
Adjustable buzzer/alarm volume
Thermostat range 50-260°C
Timer range from 180 minutes in countdown mode
Timer range up to 999 minutes in time count mode for holding,
slow cooking
Over-temperature safety cut-out

CLEANING:
Stainless steel top and side exterior panels
Vitreous enamel oven chamber
Fully removable stainless steel oven side racks
Removable stainless steel oven fan baffle
Easy clean door system with hinge out door inner glass (no
tools required)
Removable plug-in oven door seal (no tools required)
76mm high stainless steel feet for easy access underside

SPECIFICATIONS:
Electrical Requirements
230-240V, 50Hz, 1P+N+E, 6.5kW, 27A
No cordset supplied
Water Requirements (optional)
Cold water connection ¾” BSP male
80psi maximum inlet pressure / 20psi minimum inlet pressure
External Dimensions:735w x 810d x 730h mm including 76mm feet
Oven Internal Dimensions: 465w x 700d x 515h mm
Volume 0.17m3
Oven Rack Dimensions: 460w x 660d mm
Nett Weight: 89kg
